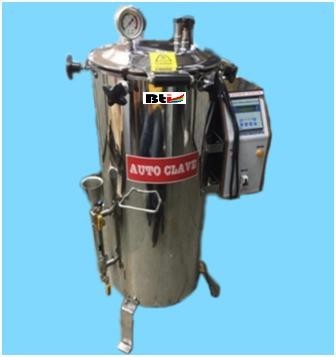

Vertical Autoclave

Top loading vertical steam sterilizers

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal is attached at the bottom. User has to press the pedal and lift the lid.

We make various types of vertical autoclave machines as per budget and intended use. Our Deluxe models are double walled vertical autoclaves and made with inner and exterior both of stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless steel sheets. We make every vertical steam sterilizer following ASME guidelines in order to ensure that they are safe for users and samples.

Features & Benefits

  • Stainless steel interior, Digital temperature indicator, Digital temperature Controller
  • ISI marked flange / immersion heating elements, Up to 121°C temperature range
  • Silicone rubber gasket, Automatic pressure control switch (Optional), Stainless steel basket
  • Reliable steam pressure gauges, Double or triple walled construction, Pedal for lid opening
  • Water level indicator, Water inlet & outlet valves

Features & Benefits

  • Ideal for 37 degree incubation
  • Durable construction with glass wool insulation
  • Removable steel wire mesh cable trays
  • Microprocessor based PID controller
  • Precise temperature accuracy & uniformity
  • Natural and forced air convection
  • Observation glass window on door

Technical Specifications

ConstructionDouble Walled ModelTriple Walled Model
MOC ExteriorSS 304 (mirror finish)SS 304 mirror finish)
No. of wallsTwoThree
LidSS 304SS 304
InteriorSS 304 with silicon gasket
Working Pressure15 to 20 psi
Working Temperature121°C to 125°C
ControllerAuto set to 15psi & 121°C
Pressure displayAnalog dial gauge
TimerSetting on Controller
Hydraulic testedHydraulically Tested up to 40 psi (ASME Guideline)
BasketStainless steel basketNot Required
Power supply220 Volts 50Hz
Standard Fittings• Pedal lifting device
• Steam release valve
• Water outlet valve
• Spring loaded safety valve
• Power cable with three pin top
Optional Accessories• Fully stainless steel construction (GMP)
• Up to 134°C temperature range
• PID temperature controller cum timer with alarm (buzzer)
• Low water indicator
• Automatic pressure switch
• PLC with HMI interface with data logging
• 21 CFR Part 11 software
• Thermal Printer
• Lower water cut-off

Standard Sizes / Dimensions

Dia. x HeightVolumeWatt
250 mm x 450 mm22 liters1 KW
300 mm x 500 mm35 liters2 KW
350 mm x 550 mm50 liters3 kw
400 mm x 600 mm75 liters4 kw
450 mm x 600 mm95 liters4 kw
450 mm x 750 mm120 liters5 kw
550 mm x 750 mm175 liters6 kw
